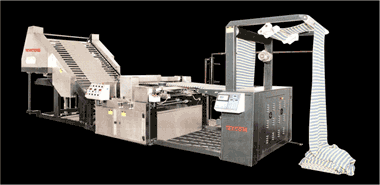

Fabric Shoe Compacting Machine

ww

Fabric Shoe Compacting Machine

Fabric Shoe Compacting Machine

With the help of our expert team members, we have been able to offer a wide range of Shoe Compact Machine. These machines are available in various technical specifications and models as per the precise demands of clients. These are ergonomically engineered using high quality components which ensure its high quality and maximum durability. We ensure optimum strength and reliability of these machines.

Features:

  • No shade loss or variation
  • Less than 2% residual shrinkage after compacting with tumble wash and drying test
  • A.C. inverter drives , PLC controlled with touch screen monitor. (Optional)
  • Compact Design
  • Stable compaction
  • Thicker and Lofty Fabric output.

Technical Specifications:

  • Working Width Max 50 inches
  • Power Consumption 18KW
  • Max Production Rate 70 meter p/min
  • Steam consumption 350 LBS/ hour
  • Air 80 PSIG Air Pressure
  • Motor ISI make/imported
  • Gear Box Imported
  • Variable Speed Imported Drive
  • Machine Dimensions Length (7 m) X Width (2.25 m) X Height (2.3 m)
+
