Fabric Reversing Machine

ww

Fabric Reversing Machine

Fabric Reversing Machine

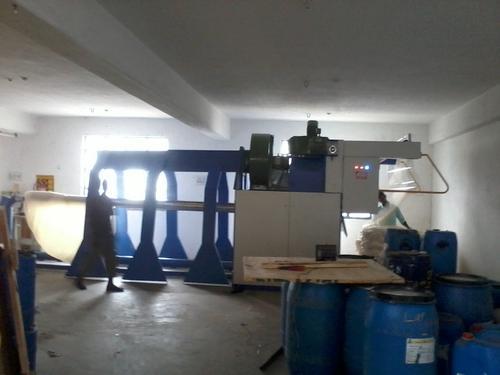

Our Reversing machine is first machine established in India for Bio wash Dust collecting. The Inconvenience of Bio Wash Dust have been solved successfully. By the Invention of the machine the Human hands work have been reduced and their are convenient in handling the machine to remove minute particles in the Fabric.

Features:

  • Avoid crease mark
  • Bio-wash Dust collecting system are first developed in the world
  • One meter folding attachment

Technical Specification:

  • Working Width Max 50(or) 60 inches Min: 16 inches
  • Max Production Rate Max 60m / min (7-20 tonne/day)
  • Power Consumption 18/15.5 HP
  • Maximum roll reversing 3 Nos (Approx: 35-45 Kgs)
  • Blower 7.5/10 H.P
  • Motor ISI make/imported
  • Gear Box Imported
  • Variable Speed Imported Drive
  • Machine Dimensions Length (6.5 m) X Width (2 m) X Height (2.7 m)
+
